Fits TVs
26" to 55"
VESA Range
100 x 100mm to 400 x 400mm.
Extension
16.2" (410mm)
Tilt +5°/-12°
Swivel +/-45°
Weight Capacity
99 lbs (45 kg)
1. PSMFK4-C full-motion design enables you to adjust the angle of your TV based on your viewing position in the room.

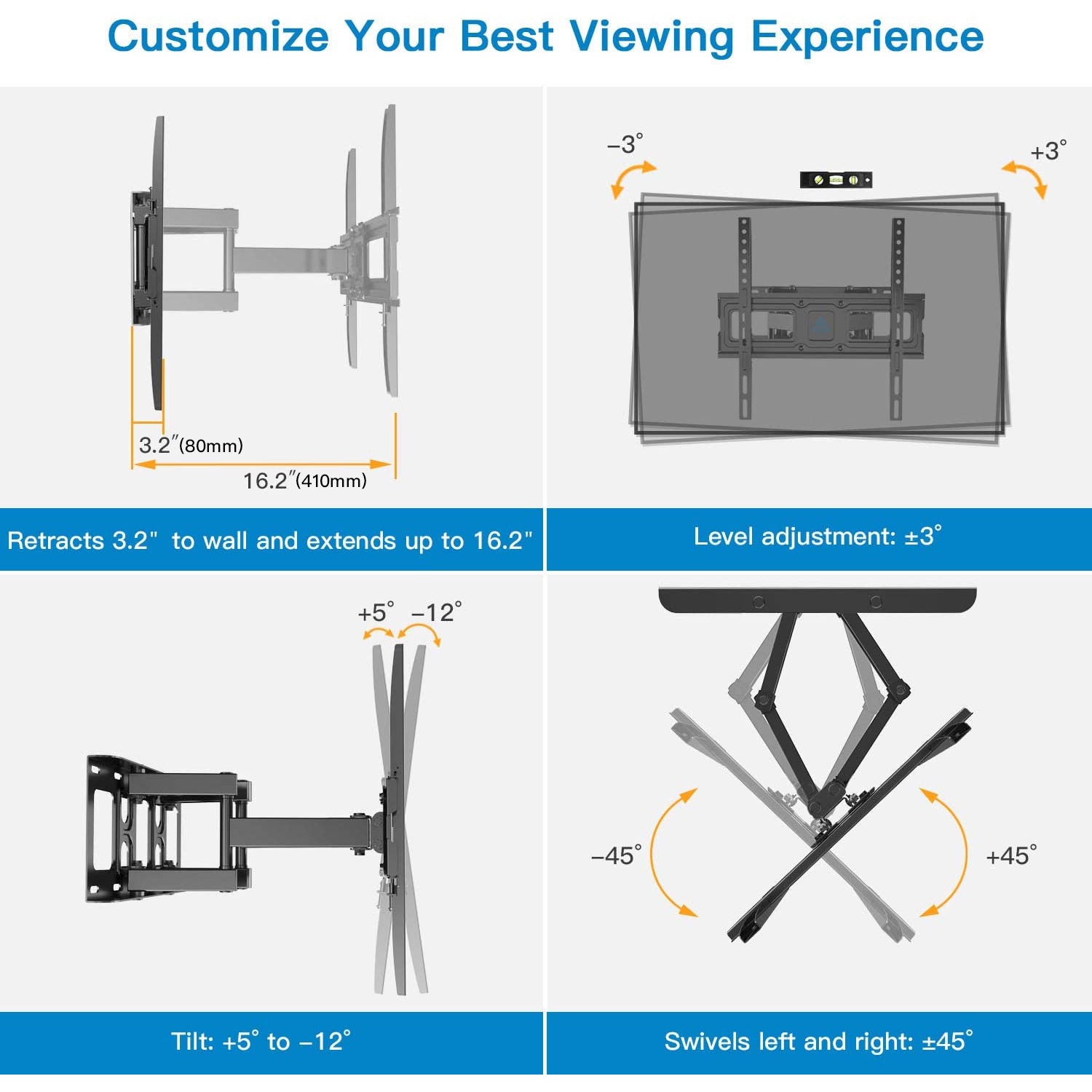

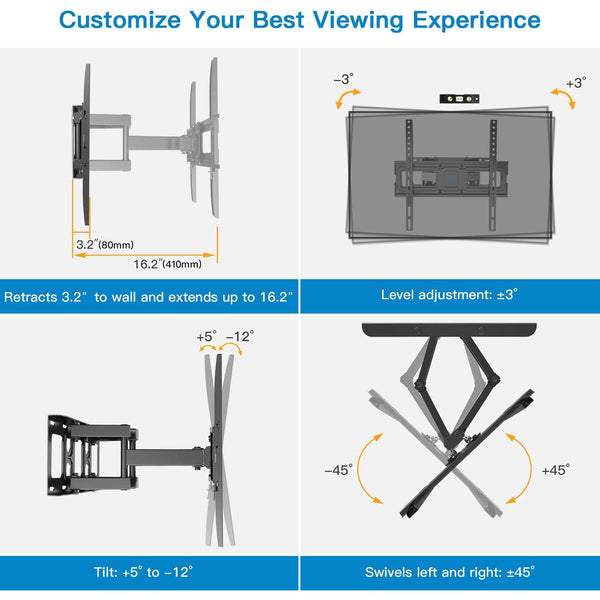

2. Features +5°/-12° tilt, up to +/-45° swivel (depending on TV size), and +/-3° leveling after installation for optimum viewing.
3. Extends from 3.2" (80mm) to 16.2" (410mm). Bring the action closer and get the right TV position for any seating arrangement or activity.
4. Fits most 26" to 55" TVs weighing up to 99 lbs (45 kg), with VESA patterns ranging from 100 x 100mm to 400 x 400mm..
5. Includes full instruction manual and standard mounting hardware.
6. A 5-year limited warranty and professional customer support ensure total peace of mind.
| Product Compatibility | |
| Brand | Perlesmith |
| Model Number |
PSMFK4-C
|
| Type | Full Motion |
| TV Size Range | 26" to 55" |
| Maximum TV Weight | 99 lbs (45 kg) |

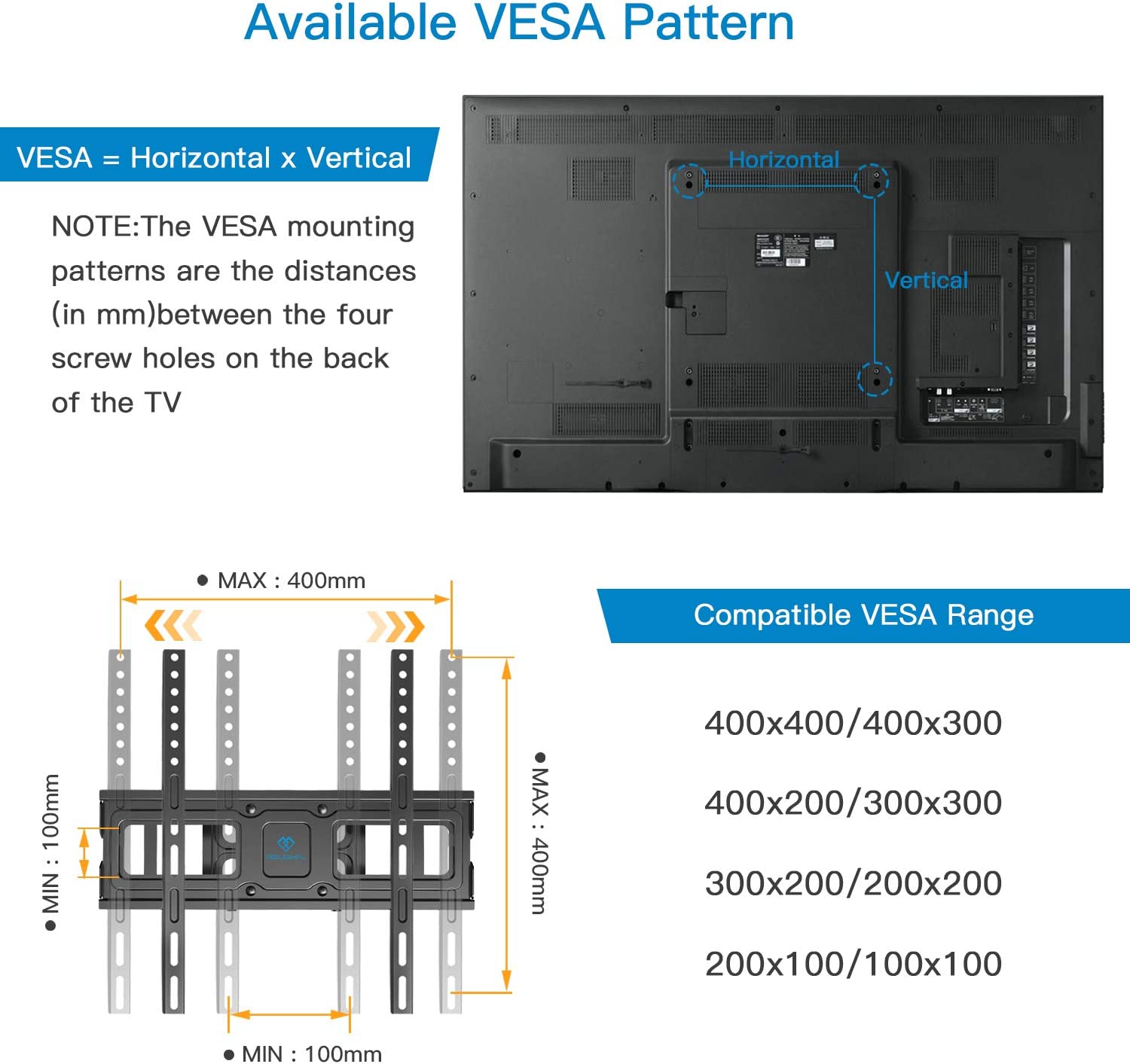

| VESA Range | 100x100mm, 200x100mm, 200x200mm, 300x200mm, 400x200mm, 400x300mm, 400x400mm |

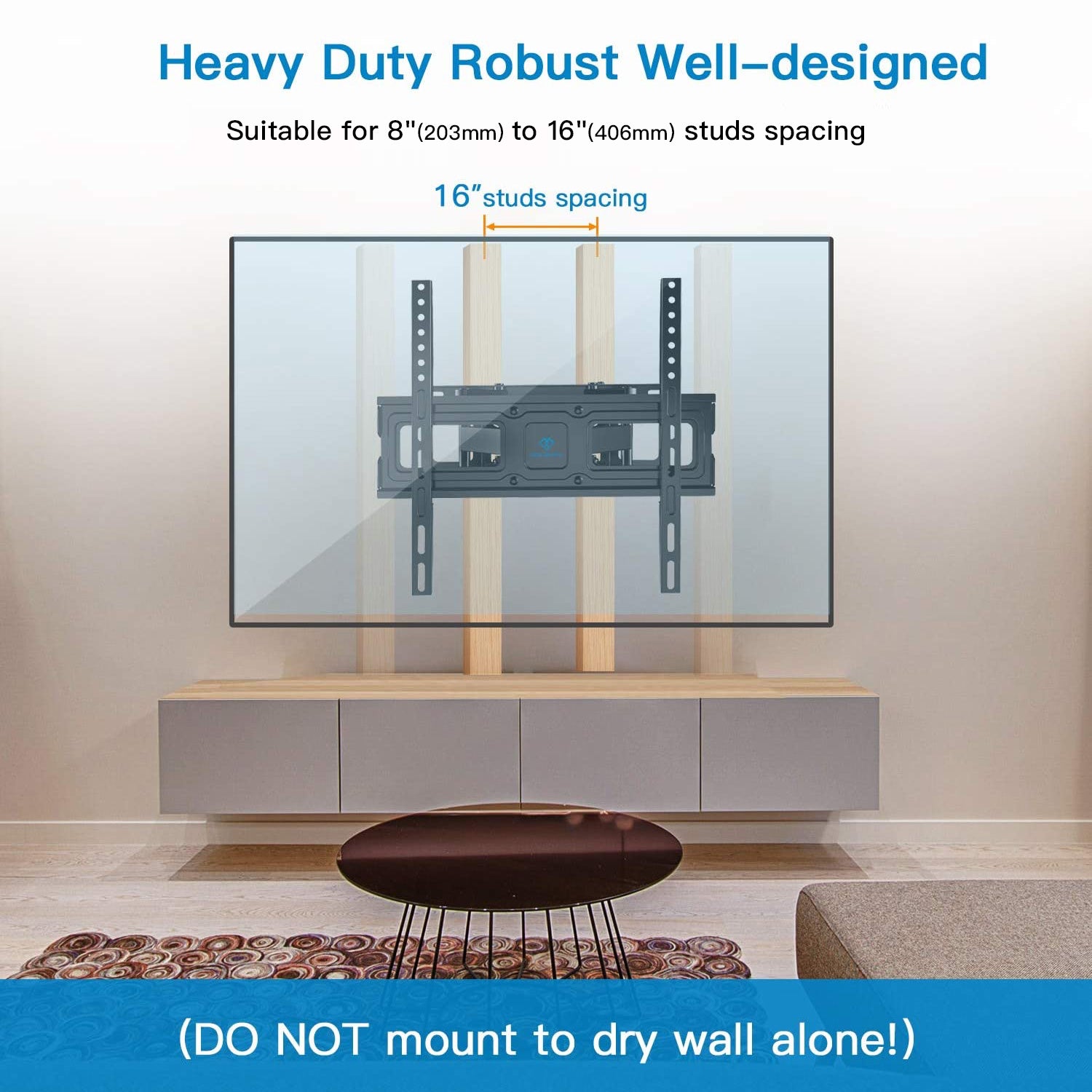

| Wall Type | Wood Studs 8" (203mm),16" (406mm) on Center, Concrete and Brick Walls |
| Product Information | |
| Swivel | +/-45° |
| Tilt | +5°/-12° |
| Profile | 3.2" (80mm) |
| Extension | 16.2" (410mm) |
| Level | +/-3° |
| Wall Plate Dimensions | 9.92" x 5.19" (252mmx132mm) |
| Package Weight | 9.02 lbs (4.09 kg) |
| Package Dimensions | 17.48" x 7.2" x 2.95" (444mm x 183mm x 75mm) |
