Fits TVs
37" to 75"
VESA Range
200x100mm to 600x400mm
Extension
16" (406mm)
Tilt +5°/-15°
Swivel +/-45°
Weight Capacity
132 lbs (60kg)

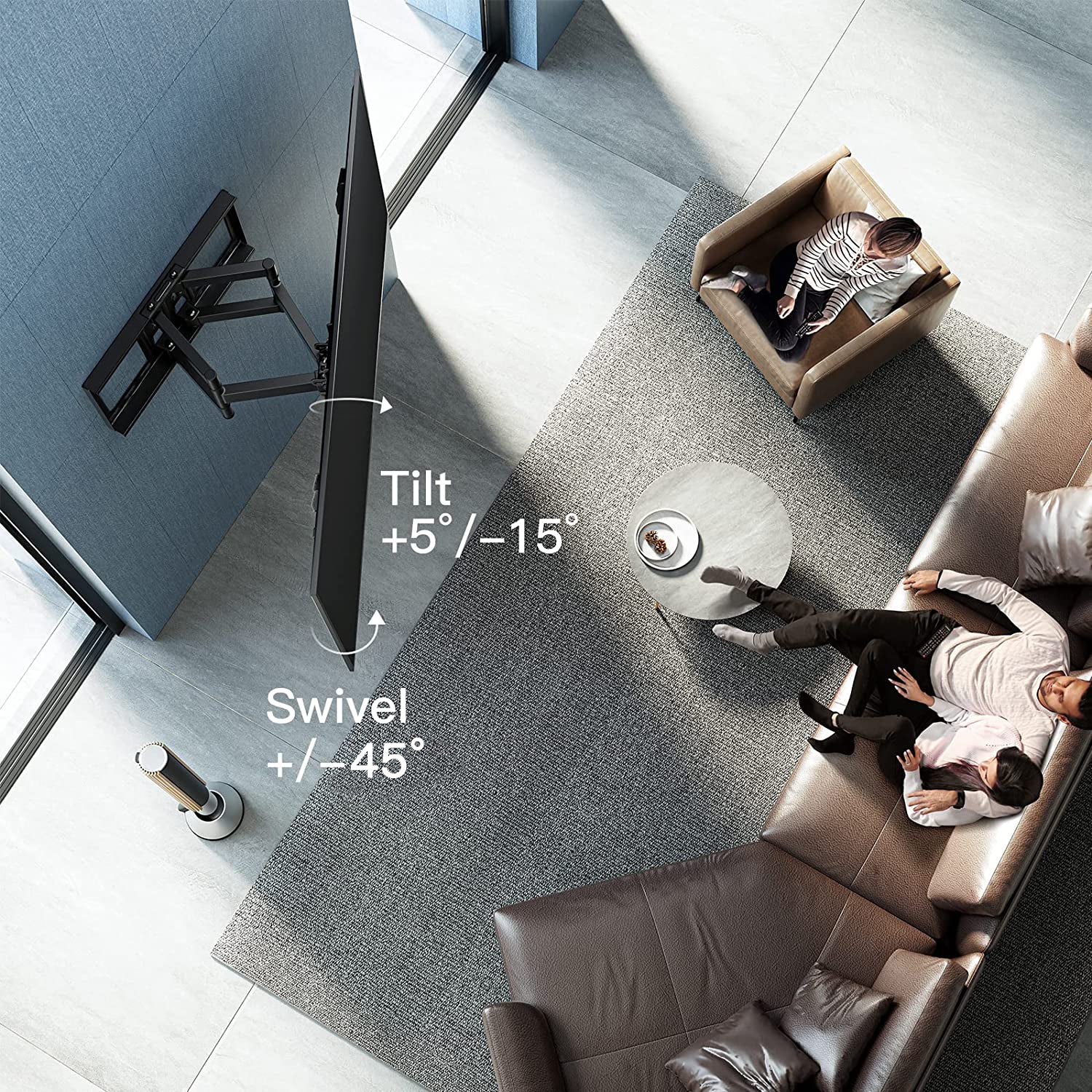

1. PSLFK1-C full motion design allows you to adjust the angle of your TV based on your viewing position in the room.

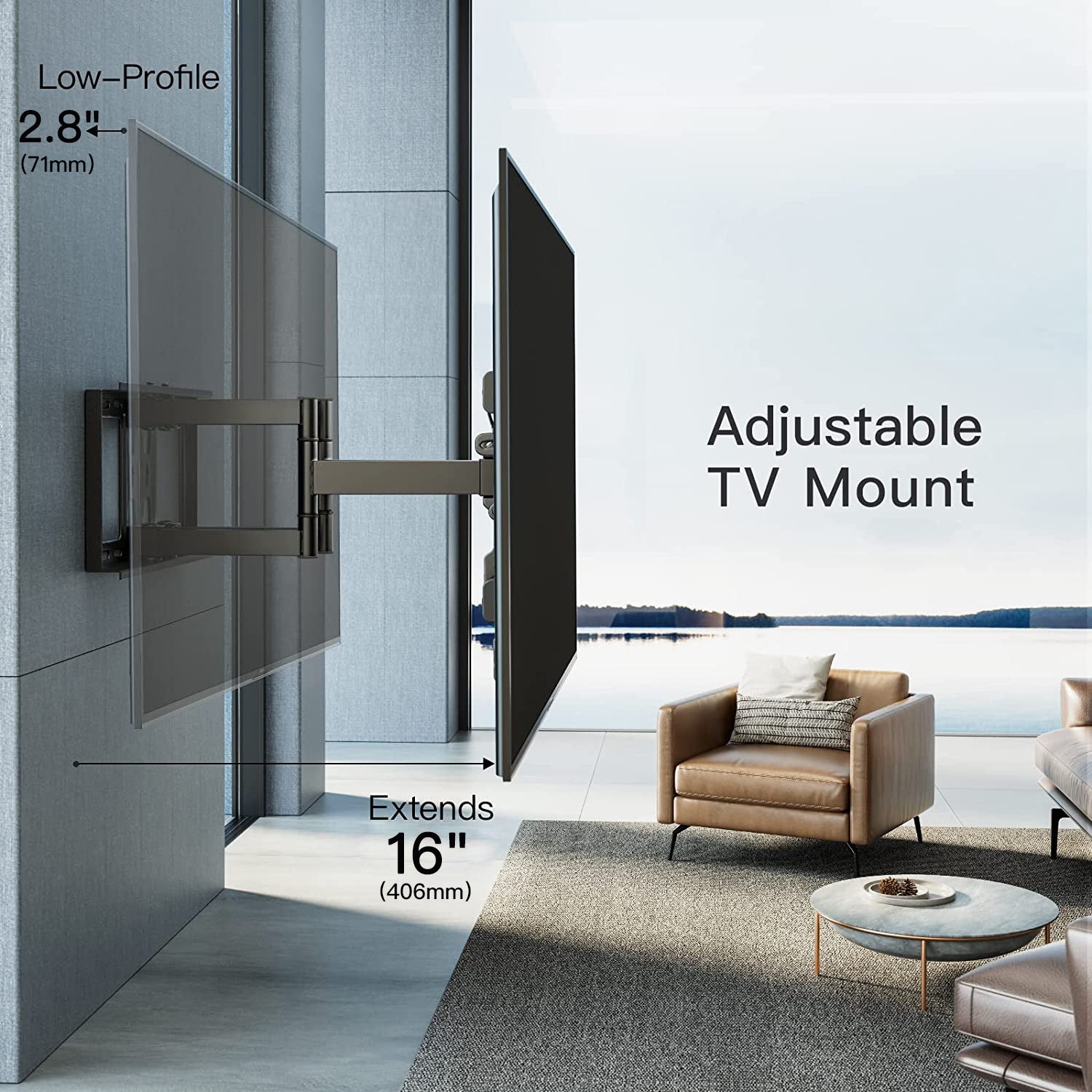

3. PSLFK1-C extends from 2.8" (71mm) to 16" (406mm). Weight Capacity 132 lbs (60kg).

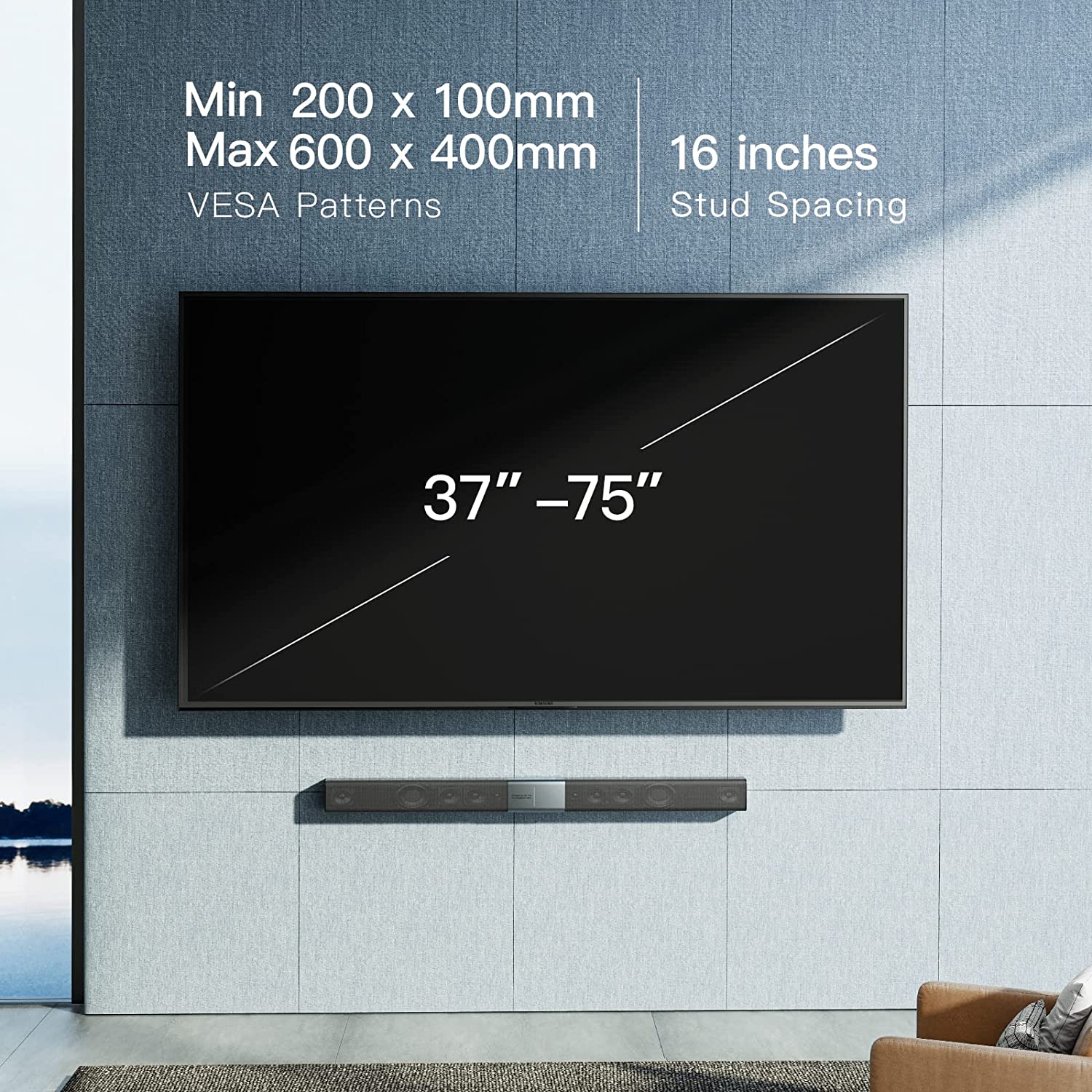

4. Universal VESA mounting plate adjust from 200x100mm to 600x400mm.

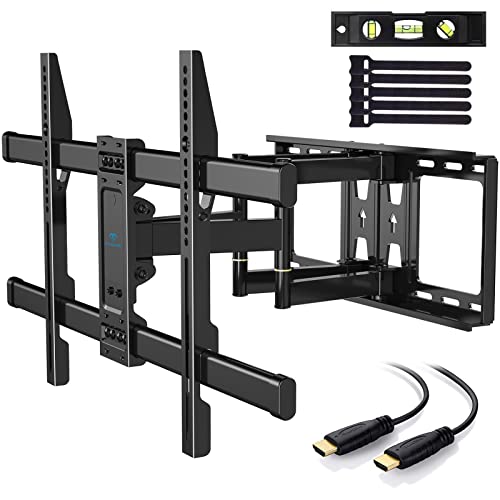

5. Instruction manual and standard mounting hardware included.
6. 5-year limited warranty and professional customer support.
| Product Compatibility | |
| Brand | Perlesmith |
| Model Number |
PSLFK1-C
|
| Type | Full Motion |
| TV Size Range | 37" to 75" |
| Maximum TV Weight | 132 lbs (60kg) |
| VESA Range | 200x100mm,200x200mm,200x300mm,200x400mm,300x200mm,300x300mm,300x400,400x200mm,400x300mm,400x400mm,500x400mm,600x400mm |
| Wall Type | Wood Studs 12" (305mm), 16" (406mm) on Center, Concrete and Block Walls |
| Product Information | |
| Swivel | +/-45° |
| Tilt | +5°/-15° |
| Profile | 2.8" (71mm) |
| Extension | 16" (406mm) |
| Level | +/-3° |
| Wall Plate Dimensions | 17.32" x 8.66" (440mmx220mm) |
| Package Weight | 15.06 lbs (6.83 kg) |
| Package Dimensions | 17.32" x 12.13" x 2.91" (440mm x 308mm x 74mm) |
