Fits TVs
23" to 60"
VESA Range
75x75mm to 400x400mm
Tilt
0/-7°
Weight Capacity
115 lbs (52 kg)

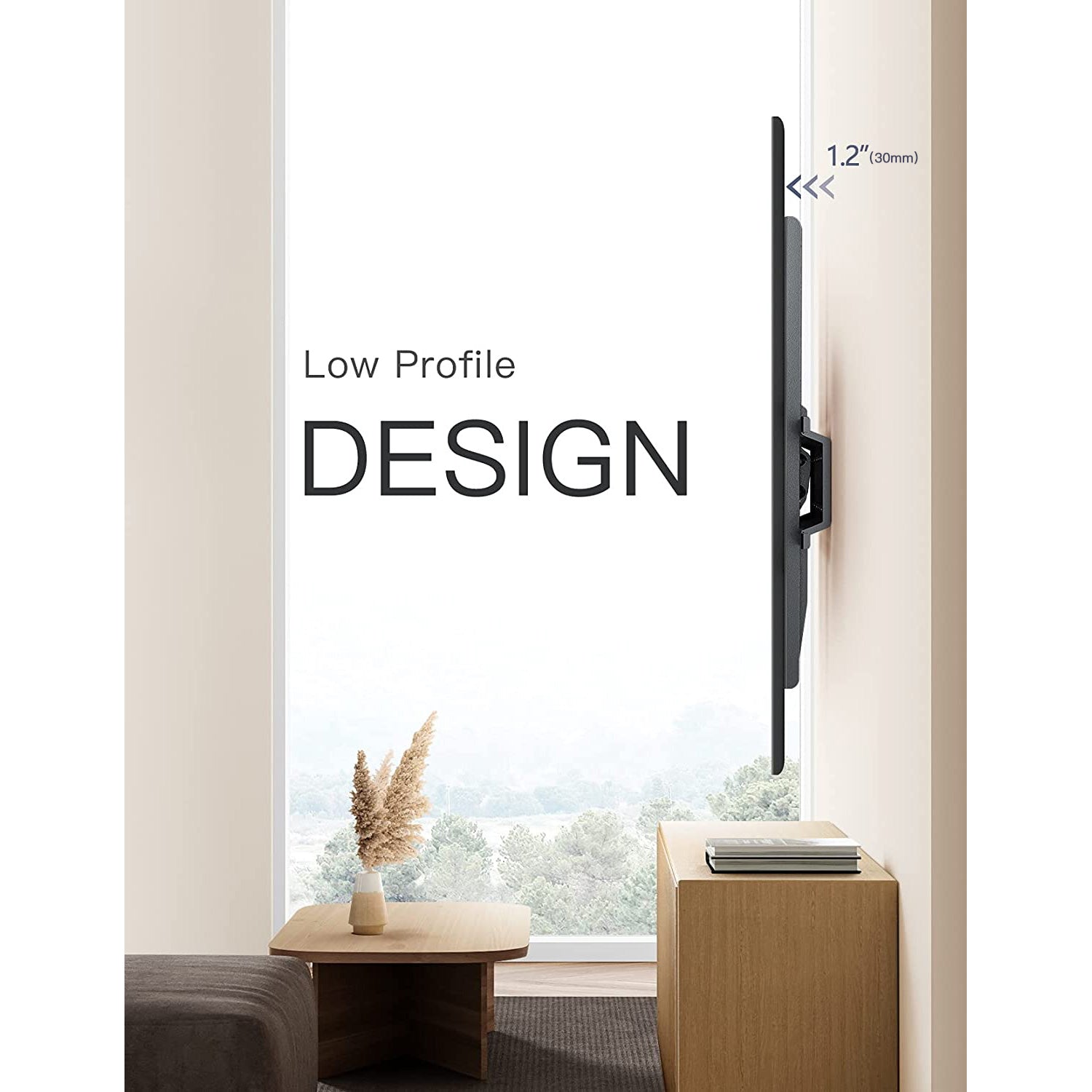

1. Tilt and low-profile design sits only 1.2" (30mm) from the wall for an ultra-thin look.

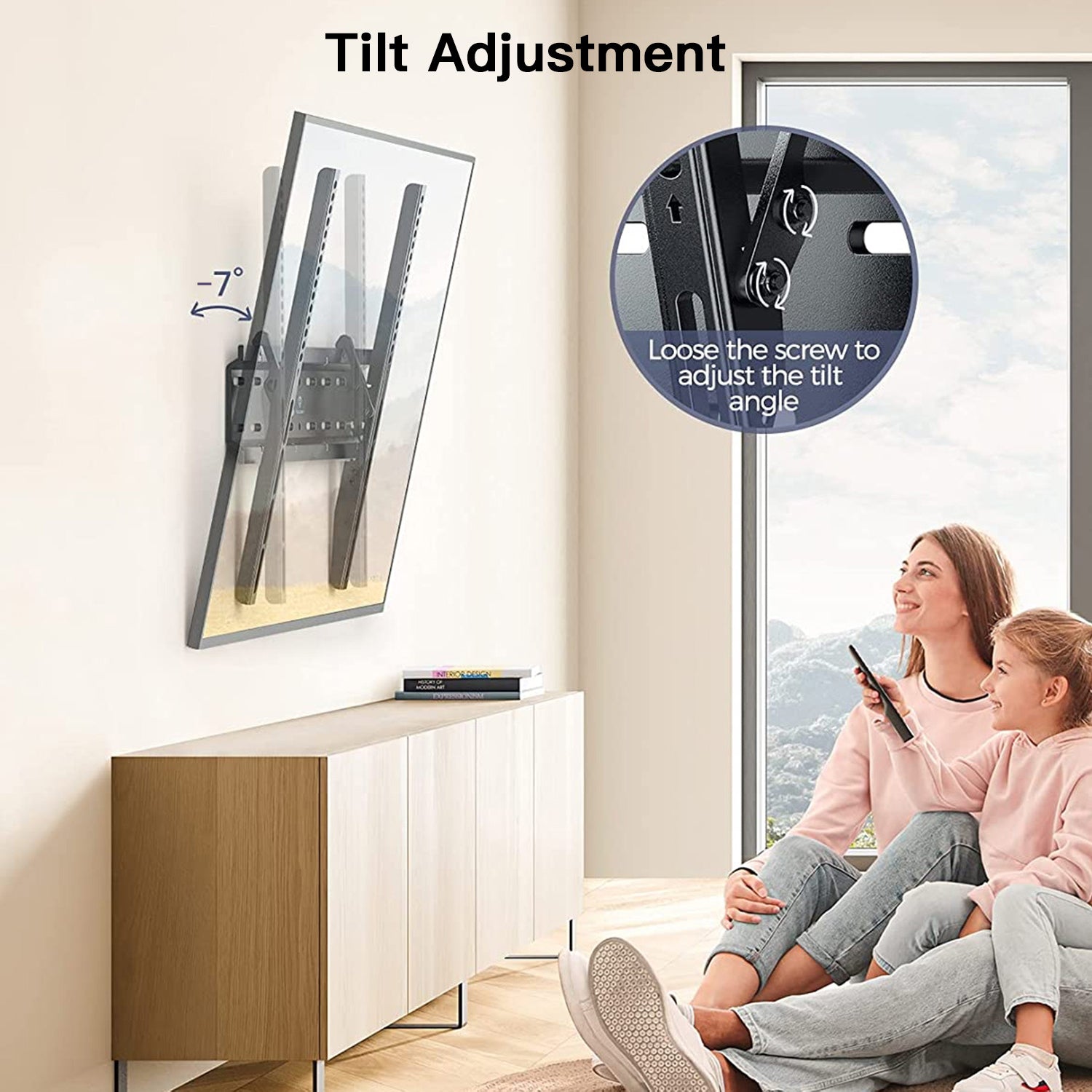

2. Tilt adjust 0/-7° to help reduce glare and for a more enjoyable viewing experience.
3. PSMTK1-C features a pull cord unlocking mechanism to easily release your TV from the mount.
4. Universal VESA mounting plate adjust from 75x75mm to 400x400mm. Weight capacity 115 lbs (52 kg).
5. Instruction manual and standard mounting hardware included.
6. 5-year limited warranty and professional customer support.
| Product Compatibility | |
| Brand | Perlesmith |
| Model Number |
PSMTK1-C
|
| Type | Tilt |
| TV Size Range | 23" to 60" |
| Maximum TV Weight | 115 lbs (52 kg) |
| VESA Range | 75x75mm,100x100mm,100x200mm,200x100mm,200x200mm,200x300mm,200x400mm,300x200mm,300x300mm,400x200mm,400x300mm,400x400mm |
| Wall Type | Wood Studs 12" (305mm), 16" (406mm) on Center, Concrete and Block Walls |
| Product Information | |
| Tilt | 0/-7° |
| Profile | 1.2" (30mm) |

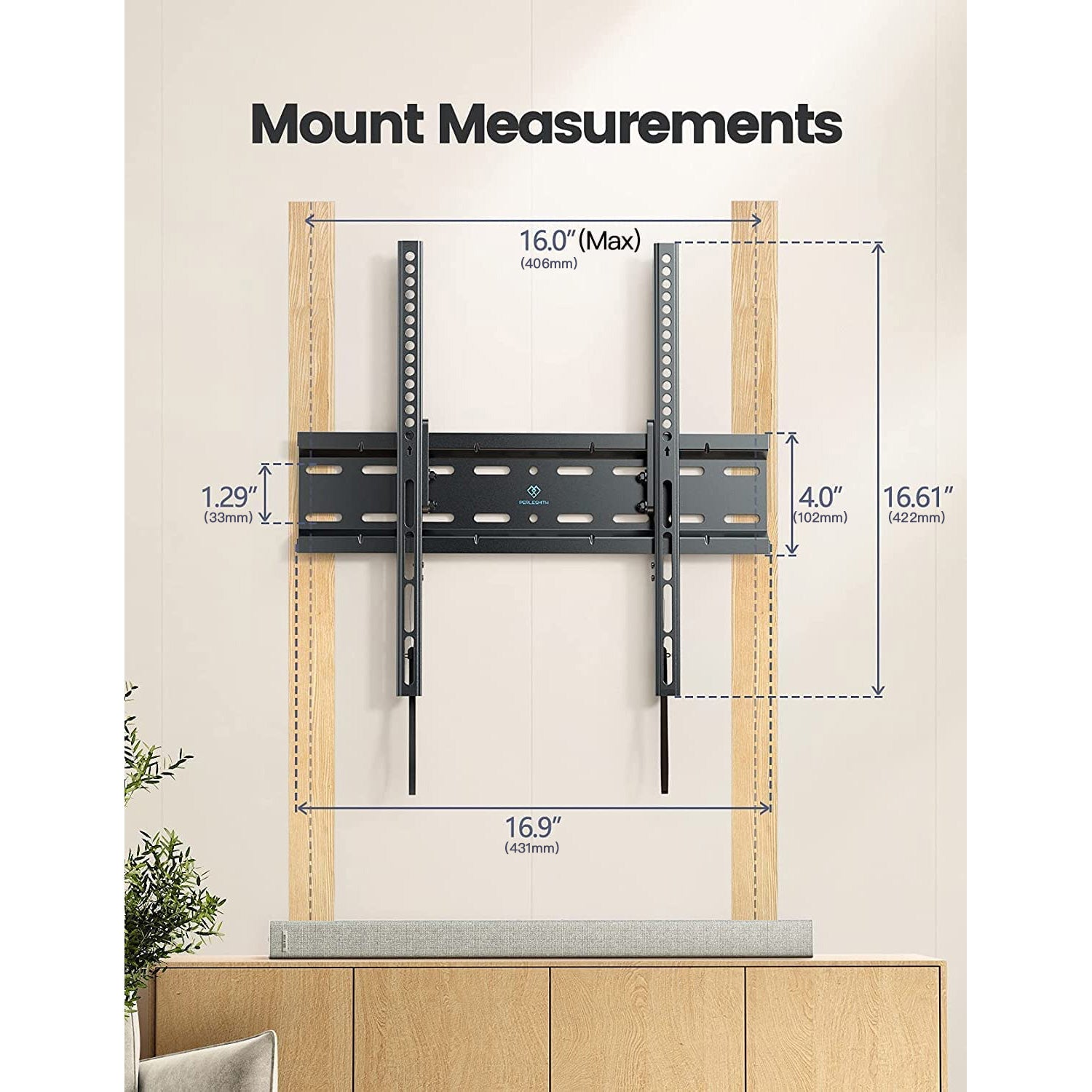

| Wall Plate Dimensions | 16.97" x 3.94" (431mmx100mm) |
| Package Weight | 3.15 lbs (1.43 kg) |
| Package Dimensions | 17.24" x 4.53" x 1.61" (438mmx115mmx41mm) |
